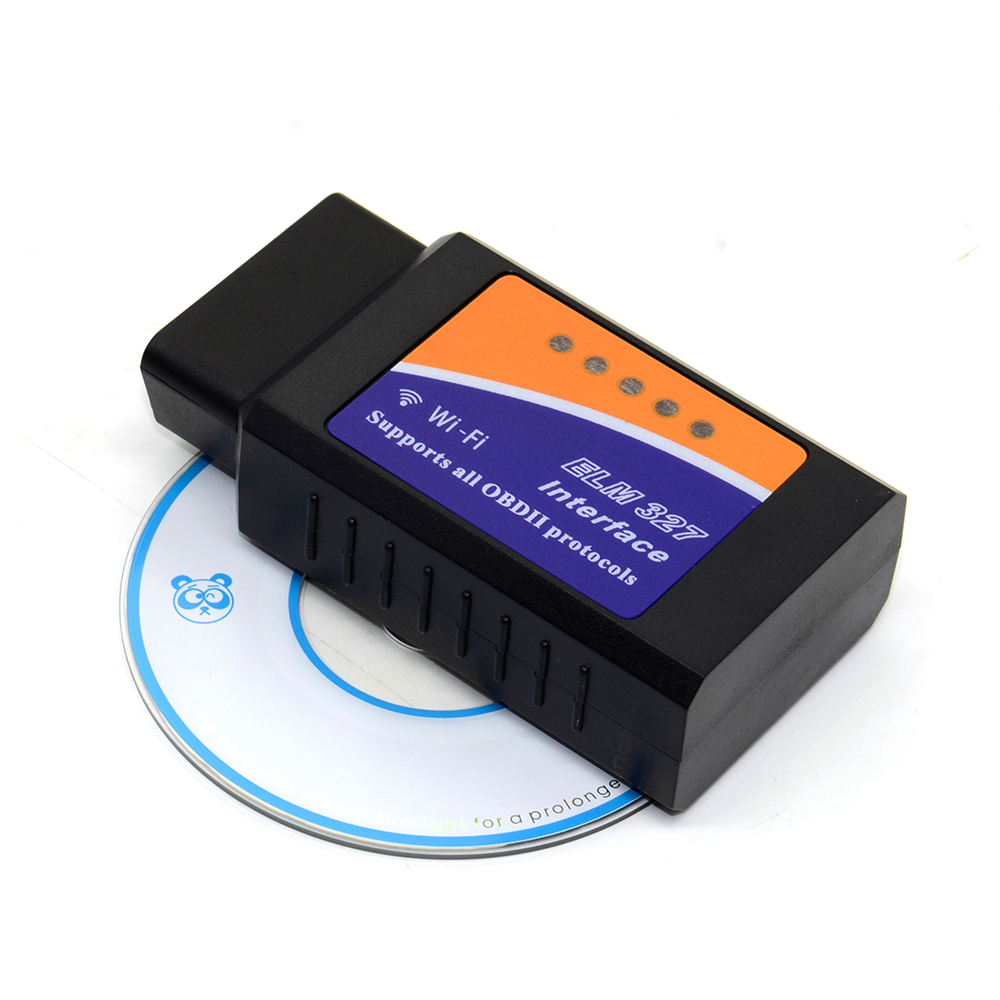

New Arrival ELM327 WIFI V1.5 OBD2 Auto Code Reader Wi-Fi Connection

ELM327 WIFI: Connection: WIFI Wireless Connection by Smart Phone Hardware V1.5,Software V2.1 Supported Platform: Android Torque/IOS System/ Windows PC(WinXP/Win7 bits) Pay attention: Don't support Win7(64bits) and Win8 Supports 12V Gasoline Cars,NO WORK Diesel&Trucks Hardware V1.5 have VERY Stable Function .It supports All OBD2 Protocols,supports more cars and more protocols.It supports SAE J1850 PWM and SAE J1850 VPW protocols. Description: WIFI OBD AUTO CHECKER is able to detect and interpret these protocols automatically. It also provides support for high speed communications and a low power sleep mode. It use AT commands to communicate with a host device (PC, notebook, iPhone, iPod touch, iPad and so on). There are plenty of software packages available, which are fully compatible with WI-FI OBD AUTO CHECKER. Some of them have pretty useful features, such as engine running parameters monitoring, DTC reading and clearing, MPG meter, etc. You can even write your own software on a specified hardware platform if you wish, because the AT commands are fully documented and very well explained. Wifi OBD ELM327 Technical Specifications: SSID: CLKDevices IP: 192.168.0.10 Subnet: 255.255.255.0 Port: 35000 Range: 50 ft (Line of sight) Antenna: Internal Power Consumption: 0.75 Watts (With Power Switch) Wifi Standard: 802.11a/b/g Operating Temperature: -15 to 100 Deg Celsius Plastic: Automotive Grade Features: CLK is capable of communicating with vehicles which adopt following protocols: ISO 9141 ISO 11898(aka. CAN) ISO 14230(aka. KWP2000) ISO 15765(aka. CAN) SAE J1939 Functions: 1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database). 2.Clear trouble codes and turn off the MIL ("Check Engine" light) 3.Display current sensor data 4.Engine RPM 5.Calculated Load Value 6.Coolant Temperature 7.Fuel System Status 8.Vehicle Speed 9.Short Term Fuel Trim 10.Long Term Fuel Trim 11.Intake Manifold Pressure 12.Timing Advance 13. Intake Air Temperature 14.Air Flow Rate 15.Absolute Throttle Position 16.Oxygen sensor voltages/associated short term fuel trims 17. Fuel System status 18.Fuel Pressure
