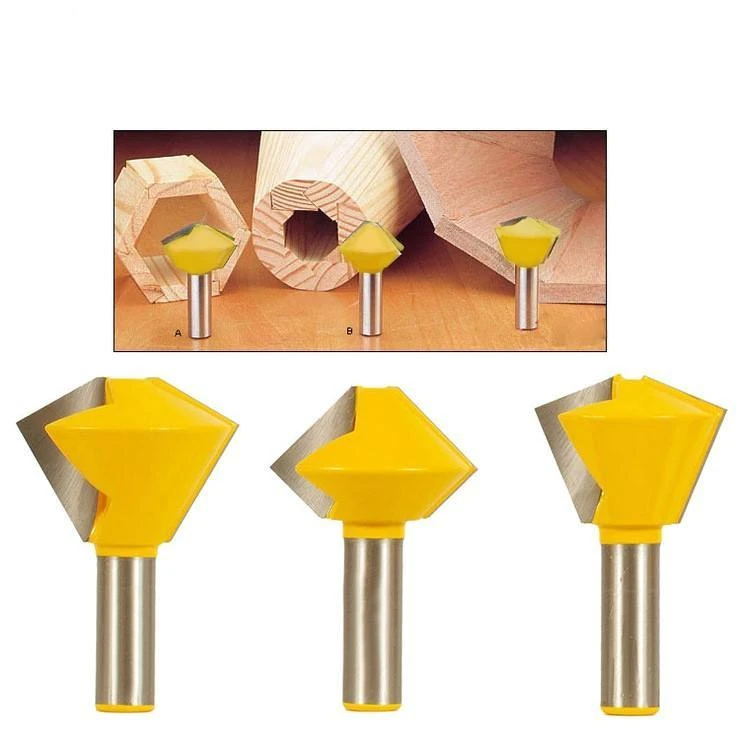

Bird's Mouth Router Bit

Product information: Ball head diameter (mm): 47 Center minimum cutting diameter (mm): 47 Cutting diameter (mm): 37 Maximum cutting depth: 22 Number of effective cutting edges around: 2 Function length (mm): 37 Stem form: round Stem diameter (mm): 8 System: metric system Useful length (mm): 37 Material: cemented carbide Type: form milling cutter Number of slots: 2 Blade length: 22 (mm) Blade diameter: 22 (mm) Stem diameter: 8 (mm) Total length: 76 (mm) Coating or not: coating Applicable machine tools: many options Specification: (diameter * total length) 76 (mm) Maximum cutting diameter (mm) 37 Name: Polygonal splicing knife 8 handles Material: cutter head YG6 alloy, cutter body 45 # carbon steel, plastic sprayed on the surface Packing size: single pack 43mm * 43mm * 95mm, 3 piece set 45mm * 95mm * 128mm Uses: Used for cutting polyhedron interface, making it easier to make flower pots, uprights and wooden barrels. Simply select the knife model corresponding to the number of faces of the polyhedron to be processed. The right angle cut gives an additional bonding surface, which is a stronger mechanical bond. For the processing of hexahedron or octahedron, the surface is cut upward, and for the processing of 12 or 18 hexahedron, the surface is cut downward.
